Diffuser

  • Overview
  • Description
  • Specification
  • Related Products

参数 (3).jpg

QL-DN

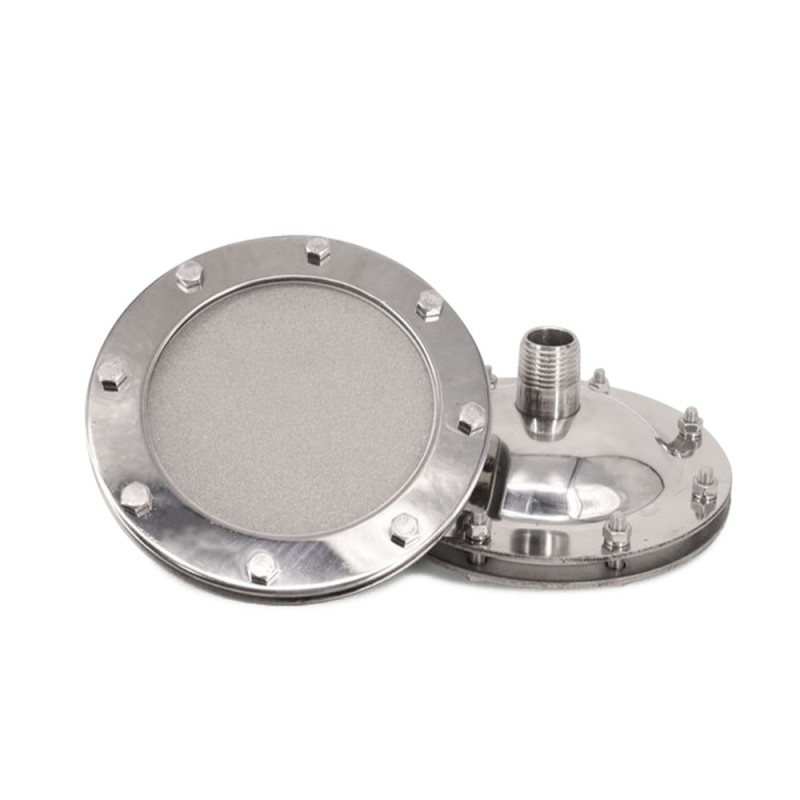

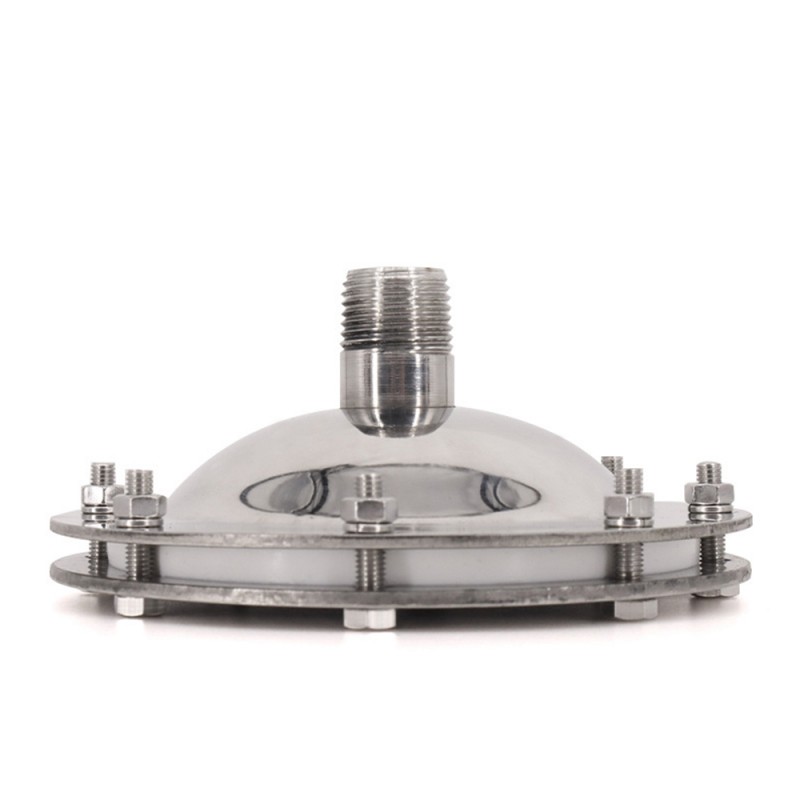

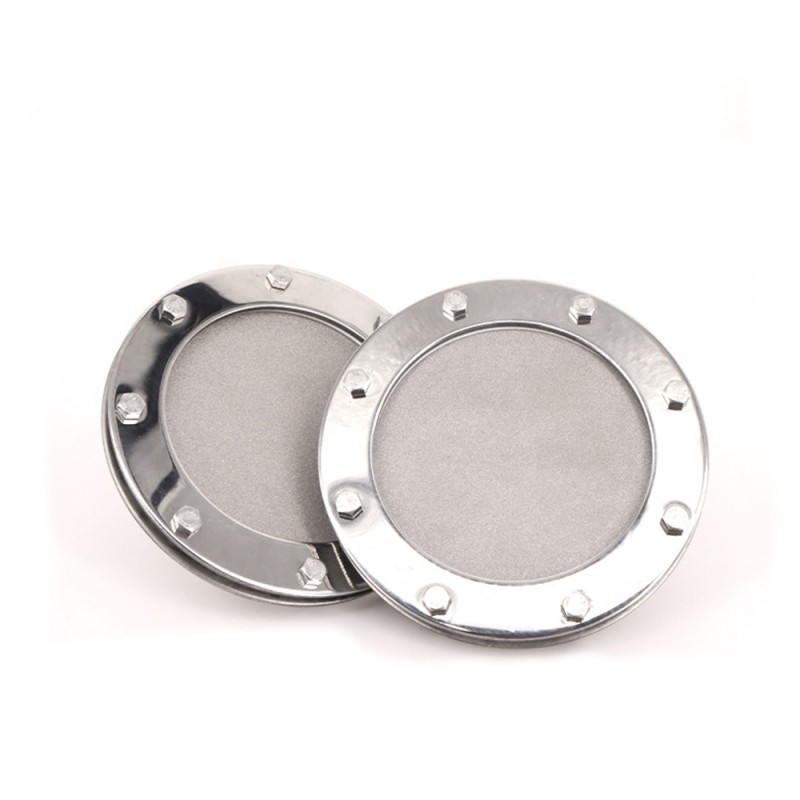

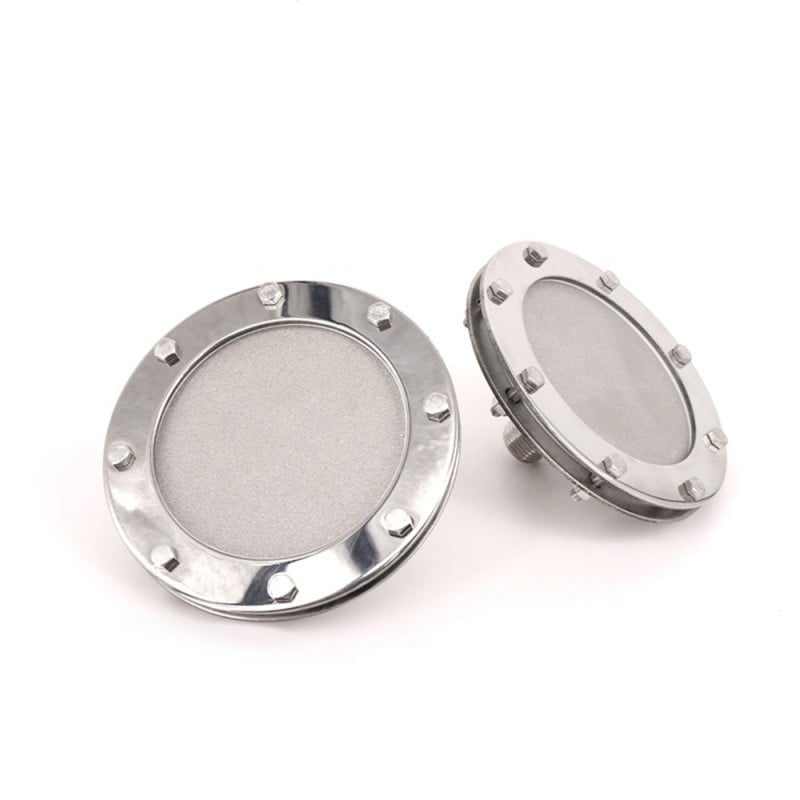

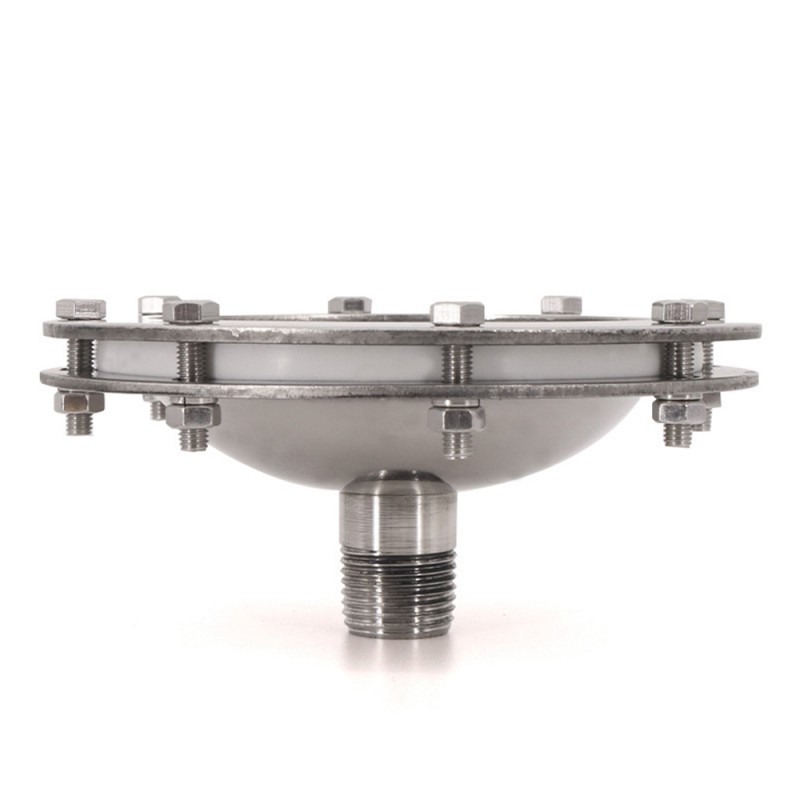

TITANIUM ALLOY AERATOR
Features
1:Micropore diameter: 4μm~10μm
2:Porosity: 35%~50%.
3:Diameter for disc:  Φ100/Φ150/Φ180mm
4:Thickness: 3mm
5:Aerated bubble: 0.1-2mm
6:Connector can be 4"or 6"with female or malescrew, tower type

Model
Outer diameter
Service area
Material
DN-125F
125mm
0.15m²
Stainless steel+titanium
DN-180F
180mm
0.35m²
Stainless steel+titanium
DN-245F
245mm
0.5m²
Stainless steel+titanium
DN-100R
100mm
0.15m²
Titanium
DN-150R
150mm
0.35m²
Titanium
DN-180R
180mm
0.5m²
Titanium
